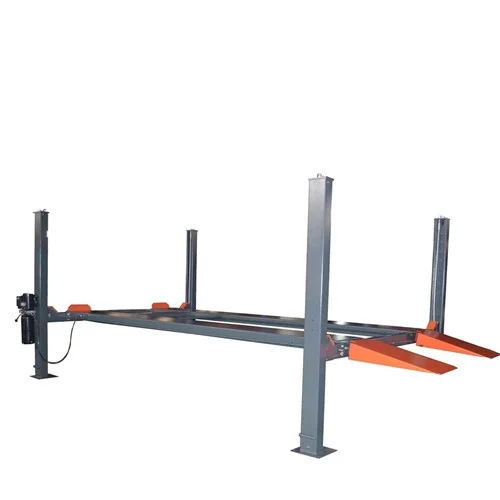

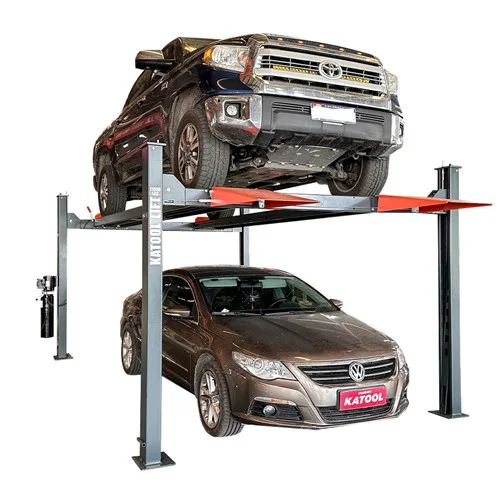

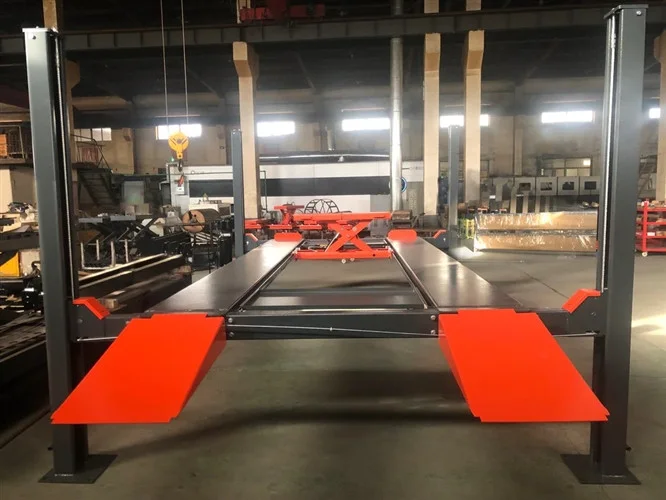

The Katool KT-4H110 four-post car lift delivers exceptional versatility and value for automotive professionals and serious enthusiasts. With an 11,000 lb. lifting capacity, this CE Approved and Certified lift handles a wide range of vehicles from sedans to light trucks with confidence. Engineered to meet rigorous 115% dynamic loading and 150% static loading capacity standards, the KT-4H110 combines safety-critical features with convenient operation—all powered by standard 110V single-phase power.

Whether you're performing routine maintenance, undercarriage inspections, or long-term vehicle storage, this lift provides the access and reliability you need. The 84.25" maximum lifting height gives you ample working room, while 14 locking positions ensure you can set the platform at the perfect height for any task. Fast operation—83 seconds up, 40 seconds down—keeps your workflow efficient, and the single point manual safety lock release makes adjustments simple and secure.

Safety-First Engineering

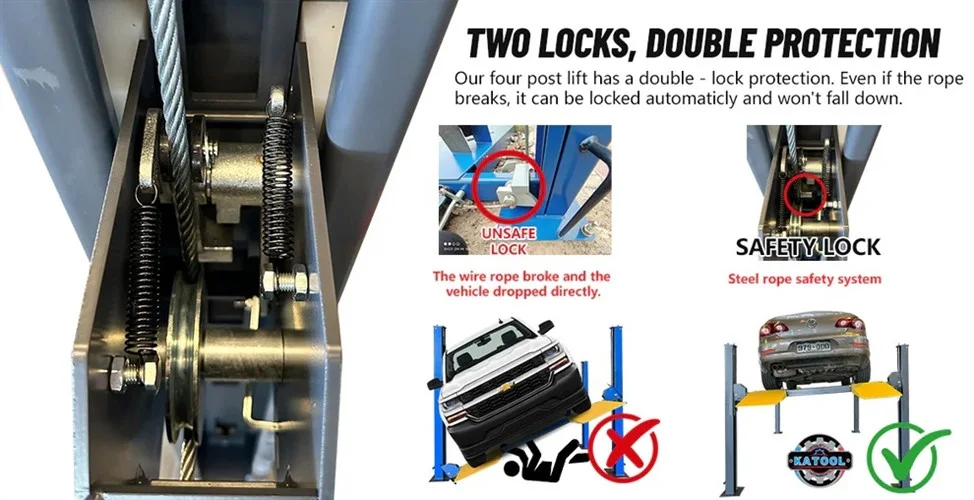

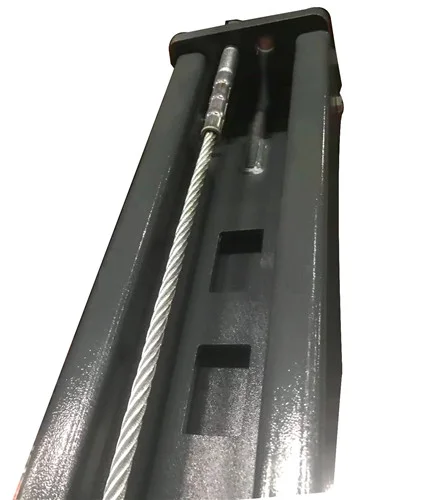

The KT-4H110 is built with multiple layers of safety protection. Four mechanical locking devices provide primary security, while a secondary lock system acts as a slack-cable device to engage automatically in the unlikely event of cable failure. This redundant safety architecture gives you peace of mind during every lift cycle.

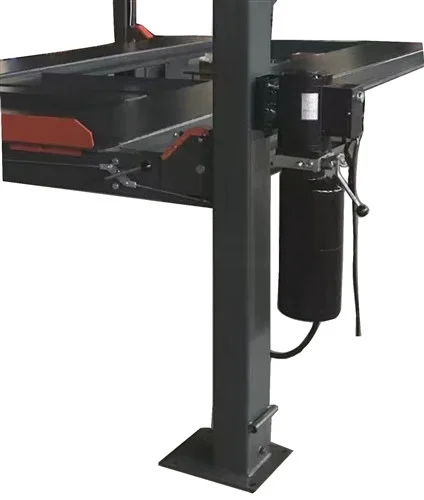

Non-skid coated platforms and adjustable safety lock ladders ensure secure vehicle positioning and operator safety. The power side column can be installed at both sides, front or rear, allowing you to configure the lift to match your shop layout and workflow preferences.

Complete and Ready to Work

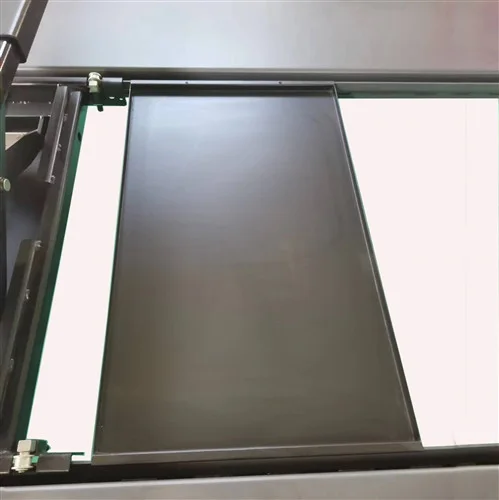

Your KT-4H110 includes essential accessories to get you working right away: three drip trays keep your work area clean during fluid changes and maintenance, while a jack tray provides convenient storage for your lifting equipment. The lift's high-quality hydraulic system is designed for reliable performance with standard 110V/60HZ/1PH power (220V option available).

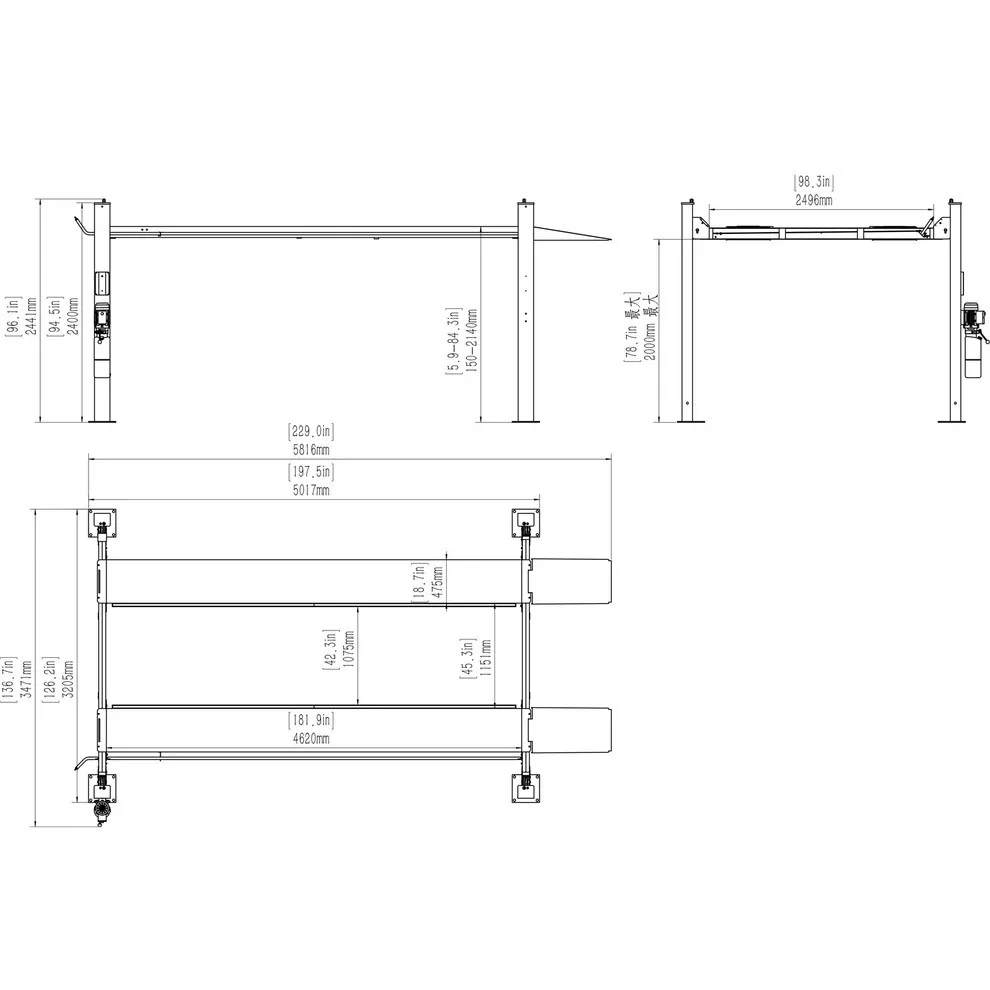

With a minimum runway height of just 6.2 inches, the KT-4H110 accommodates low-clearance vehicles with ease. The 126" overall width and 229.73" overall length (with ramps) fit comfortably in most garage spaces, while the 112.81" inside column clearance provides generous room for vehicle positioning.

Optional Accessories Available

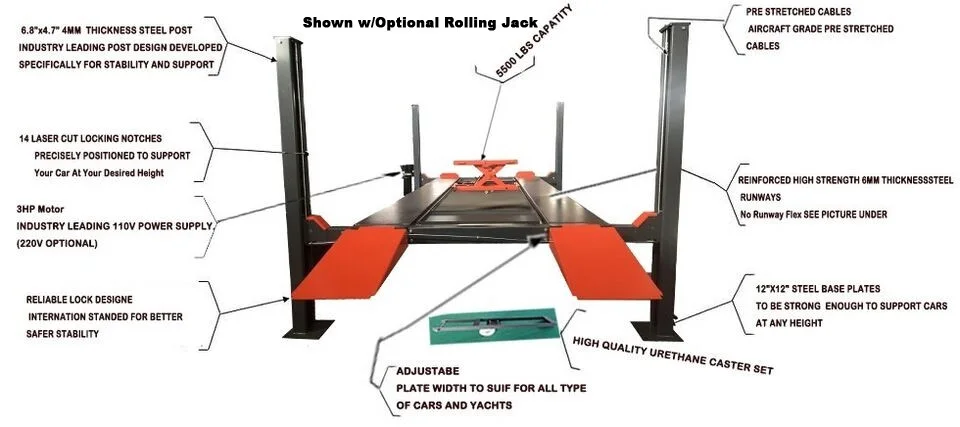

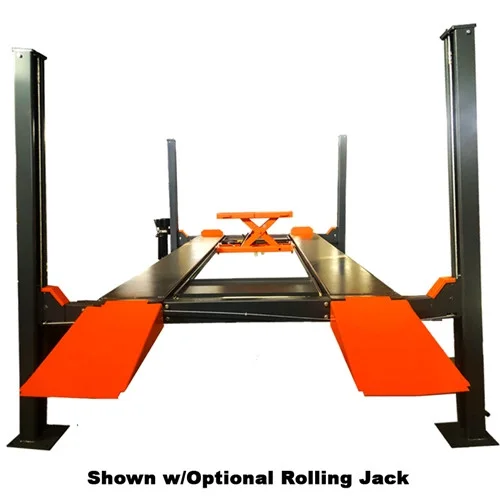

Enhance your lift's functionality with an optional caster kit for easy repositioning around your shop, and optional rolling jacks for flexible lifting solutions. (Rolling jacks and casters sold separately.)

Key Highlights

• 11,000 lb. capacity — handles a wide range of vehicles from cars to light trucks
• CE Approved and Certified — meets rigorous 115% dynamic and 150% static load testing standards
• 84.25" maximum lifting height with 14 locking positions for precise work positioning
• Single point manual safety lock release — easy, secure height adjustments
• Dual safety systems — four mechanical locks plus secondary slack-cable protection
• Standard 110V single-phase power — no special electrical requirements
• Includes 3 drip trays and jack tray — complete package ready for professional use
